Suevia Krazzmaxx III 230 V Dubbelborste

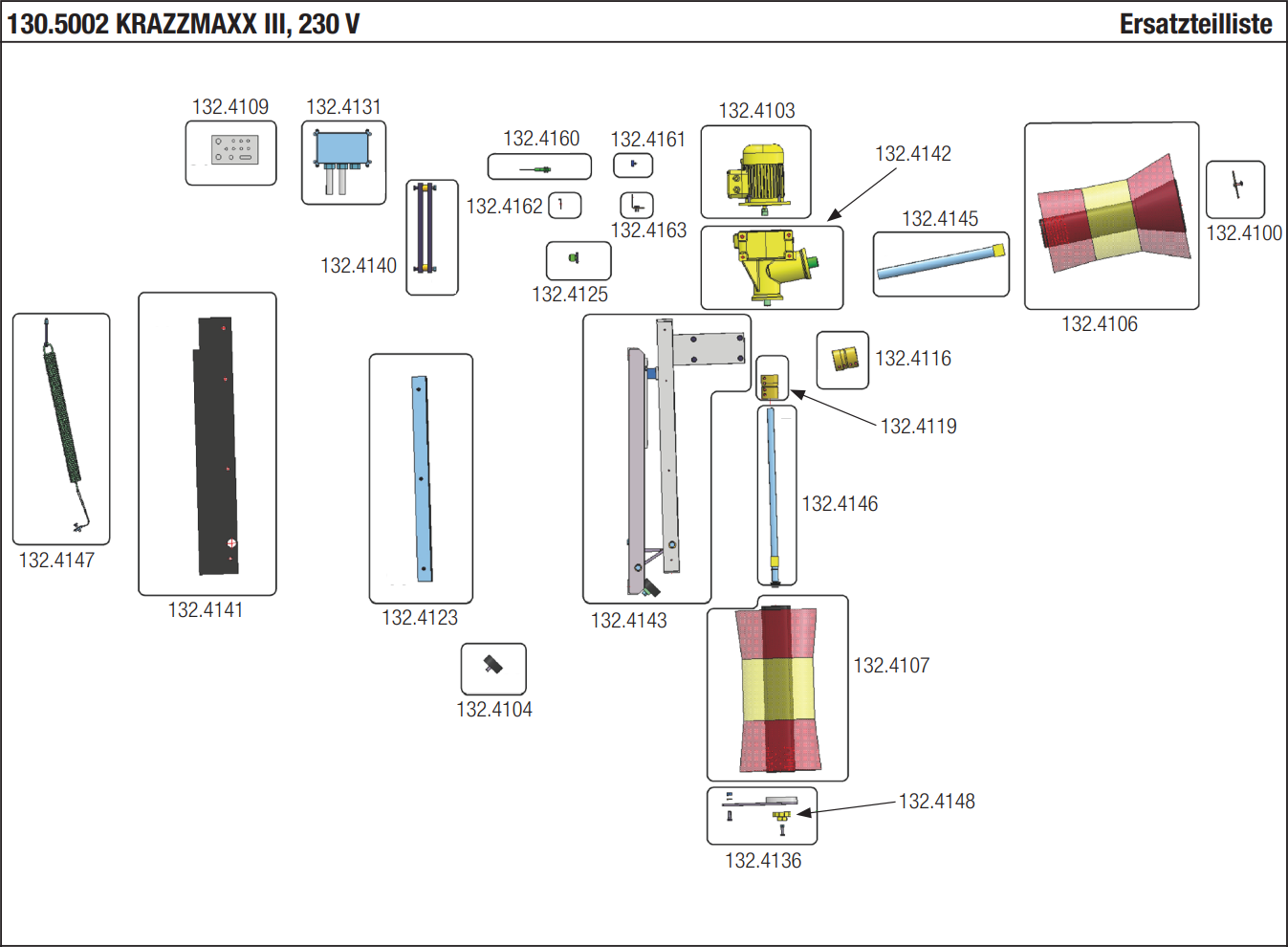

Klicka på "Läs mer" för att se sprängskiss och reservdelslista.
Nedan finner du reservdelarna.
För pris och leveranstid Kontakta oss!
| Position | Artnr. | Benämning |
| 132.4100 | Disk with screw | |
| 132.4103 | Electrical motor 230 V incl. pinion | |
| 132.4104 | Rubber buffer 75 x 30 Type D | |
| 132.4106 | Round brush length 550 mm | |
| 132.4107 | Round brush length 650 mm | |
| 132.4109 | Controller board 230 V/50 Hz | |
| 132.4116 | Driving flange horizontal | |
| 132.4119 | Driving flange vertical | |
| 132.4123 | Protective cover | |
| 132.4125 | Guide bolts (1 pair) with screws | |
| 132.4131 | Control unit 230V/50Hz | |
| 132.4136 | Flange plate and washer with ball bearing | |
| 132.4140 | Guide rail unit | |
| 132.4141 | Rubber protection | |
| 132.4142 | Bevel-helical gear unit | |
| 132.4143 | Frame unit | |
| 132.4145 | Shaft (upper) | |
| 132.4146 | Shaft (lower) | |
| 132.4147 | Tension spring unit compl. (1 pair) | |
| 132.4148 | Flaged bearing unit | |
| 132.4160 | Proximity switch | |
| 132.4161 | Counter-magnet | |
| 132.4162 | Sensor supporting bracket | |
| 132.4163 | Counter-magnet supporting bracket |
